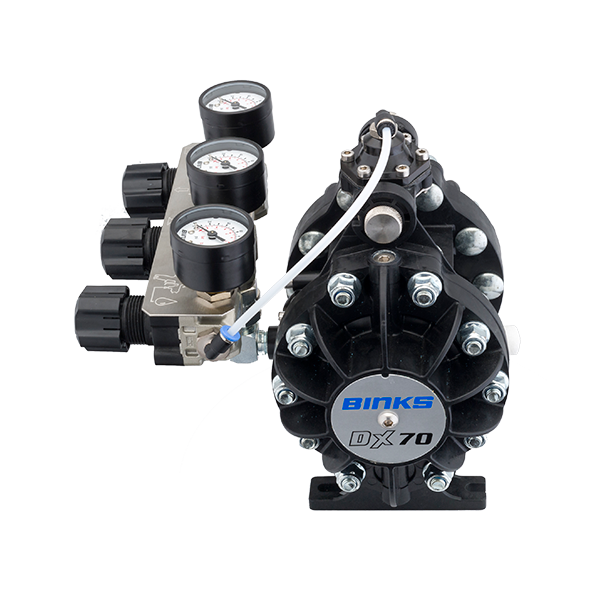

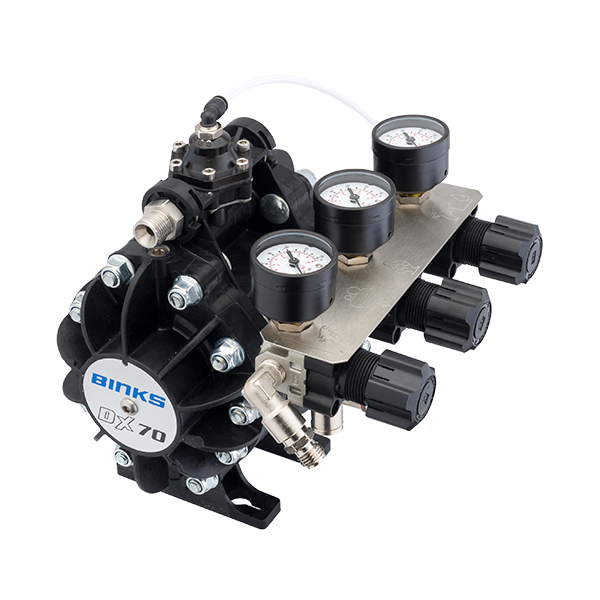

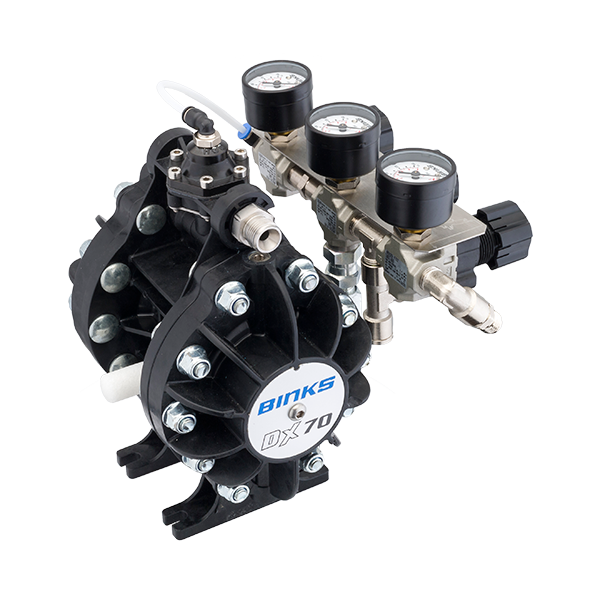

Pompa cu membrana, Binks DX70 ratio 1:1 ratio, greutate pompa - 2.2 Kg, presiune aer maxima - 7 Bar

BINKS DX SERIES: AIR OPERATED 1:1 RATIO DIAPHRAGM PUMPS
Acetal pump body with stainless steel balls and soft seats for universal paint compatibility.
The unique diaphragm design and “built in” fluid regulator provide consistent
pressure and readily adjustable paint flow.
The Non-stall air valve provides smooth, quiet and surge free paint delivery up
to 1000 cc/minute.
Clearly labelled Air regulators provide independent control of pump and
spray gun fluid and air pressures.
Quick release air, fluid inlet and outlet connections for faster maintenance.
Re-circulation/dump valve accessory for faster colour changes reducing down
time, saving time and money.
Pump outfit mountings include Cart, Wall and Tripod outfits with or without
spray guns & hoses.


Pump Ratio	1 to 1
Max. Air Pressure	7 Bar / 100 PSI
Max. Fluid Pressure	7 Bar / 100 PSI
Nominal Flow Volume / Cycle	0.07 Litres (0.018 US Gall)
Fluid Output @ 60 cycles/min	4.2 Litres / min (1.1 US Gall / min)
Max Recommended Continuous Cycle Rate	10 Cycles /min
Max Recommended Intermittent Cycle Rate	30 Cycles /min
Inlet Fluid Connection	3/8” Universal (BSPP/NPSM) Male or Female
Outlet Fluid Connection	3/8” Universal (BSPP/NPSM) Male or Female
Maximum Dry/Wet Lift	6.6m (21.8 feet)
Air Inlet	G1/4” (BSPP) Female
Fluid Regulator	Pilot Ø4 Tube
Air Volume / cycle @ 6.9Bar/100psi	0.77L (0.027SCFM)
Air Flow @ 10 cycles/min 6.9 bar/100psi	7.7L/min (0.27SCFM/min)
Air Flow @ 30 cycles/min 6.9 bar/100psi	23.2L/min (0.82SCFM/min)
Air Quality ISO 8573.1 Class 3.3.2 #	Dirt 5 microns
	Water -20°C@7bar (940ppm)
	Oil 0.1mg/m3
	Non Lubricated
Noise Level	68db LAeq
Earth (Air Inlet Cover)	<1Ω
Weight – Bare Pump	2.2 Kg (4.9 lbs)

APPLICATIONS

• Woodworking and Joinery
• Aerospace Industry
• Agricultural and Off Road
• Potteries and Ceramic Glaze*
• Trade Coaters and Jobbers
• Marine Industry
• Truck and Bus
• Rail and Transport
• Plus Many Others:

TYPICAL MATERIAL/COATING TYPES

• Solvent and Water Based Paints and Materials
• Lacquers, Stains and Varnishes
• Adhesives and Fillers
• Ceramics and Glaze*
• Sealers and Undercoats
• Plus Many Others:

*The standard pump without fluid regulator can also be used on ceramic glaze applications.

DX70 Ready assembled spray gun outfits.
Part no’s:
DX70R3-TF-FLG5 Tripod mounted pump outfit with FLG5 gun

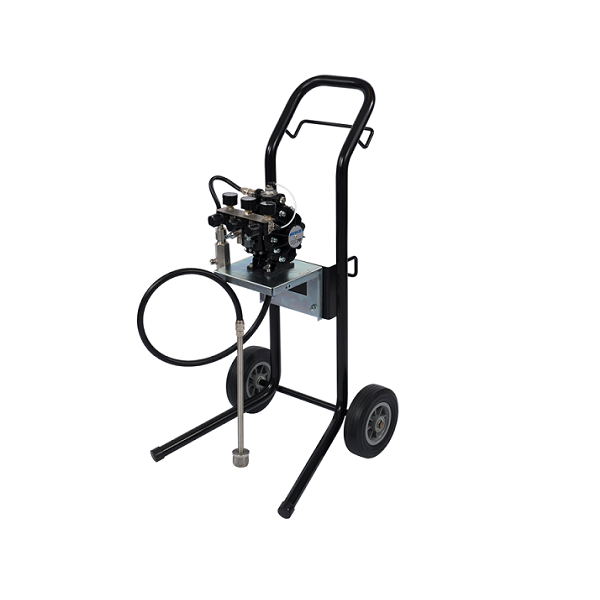

DX70R3-CF-FLG5 Cart mounted pump outfit with FLG5 gun
DX70R3-TF-ADV Tripod mounted pump outfit with Advance gun
DX70R3-CF-ADV Cart mounted pump outfit with Advance gun

Spray gun outfits include three air controls, 7.5M air and fluid hoses and fluid filter assembly with Advance HD Spray Gun Trans-Tech© (1.4mm tip with 510 air cap) OR FLG5 Spray Gun Trans-Tech© (1.4mm tip with 622 air cap).
