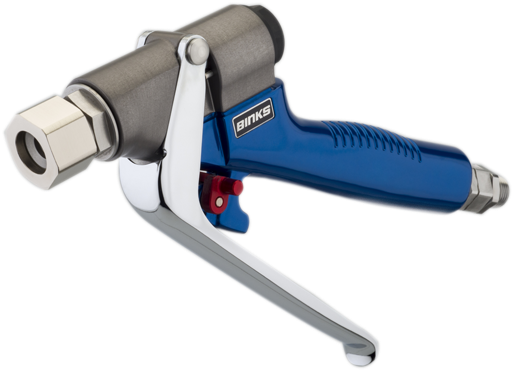

Pistol manual Binks F400 Flow-Guns Presiune max: 414 Bar

Pistol manual Binks F400 Flow-Guns Presiune max: 414 Bar

Name: Pistol manual Binks F400 Flow-Guns Presiune max: 414 Bar
Brand: Binks
SKU: FG141100
Price: 3547.00 RON
Availability: InStock

Binks

3.547,00 Lei

Special pentru: mastic, etanșant, chituri, adezivi

Model: Binks F400
Presiune max: 414 Bar
Material: Stainless Steel
Greutate: 610g

Duza: G3/8” BSPP

La comanda

Durata de livrare: 1 - 3 saptamani

Limita stoc

Adauga in cos

Cod Produs: FG141100 Ai nevoie de ajutor? 0740063200

Adauga la Favorite

Descriere
Review-uri (0)

Light-weight precision control ﬂow-guns with easy-pull triggers for reduced operator fatigue

Adaptable nozzle connection kits to ft most common nozzle tools

Durable metal body construction in aluminium and stainless steel for long working life

Longlife Tungsten Carbide Fluid Needle and Seat with extended packing life

Safe to use with ‘no-fnger-trap’ trigger and easy to operate trigger lock

Critical moving parts are enclosed in the gun head to guard against contamination.

CE Compliant

MARKETS AND APPLICATIONS

• Automotive and transport
• General Industrial
• Furniture and window production
• Marine

Binks F200 & F400 Flow-Guns

Advanced, Light-weight Pistol Grip Flow-Guns

HOW TO ORDER YOUR FLOW GUN

1. Choose your Gun Model
2. Choose your Fluid Nozzle Adaptor
3. Choose your Fluid Inlet

1. CHOOSE YOUR GUN MODEL

Model	Max Fluid Pressure	Part No.
F200	4000psi (276 Bar)	FG12XY00
F400	6000psi (414 Bar)	FG14XY00

X = Fluid Nozzle (2)
Y = Fluid Inlet (3)

2. CHOOSE YOUR FLUID NOZZLE ADAPTOR (X)

Nozzle Type	Ref No. (X)	Example Gun Part No.
Binks G3/8” BSPP	1	FG121Y00
3/4” UNF	2	FG122Y00
M18 x 1.5	3	FG123Y00

CONSTRUCTION MATERIALS

Gun head and	F200	Anodized Aluminum
Fluid Passageways	F400	Stainless Steel
Gun Handle		Anodized Aluminum
Fluid Needle and Seat		Tungsten Carbide
Seals		Polyethylene
Seals		Fluoroelastomer (FKM)
Weight (with G 3/8” BSP	F200	430g (0.95lbs)
nozzle kit)	F400	610g (1.34lbs)

ACCESSORIES

Part No	Description
FG300011	Nozzle spigot to suit Binks nozzle adaptor for nozzles with 1/8” NPT threads
104170	1/4” NPSM Z-Swivel 8000 psi (550 Bar)
104171	G1/4” BSP Z-Swivel 8000 psi (550 Bar)
107906	High Pressure Regulator 5000 psi (345 Bar)
107908	Back Pressure Regulator 5000 psi (345 Bar)
