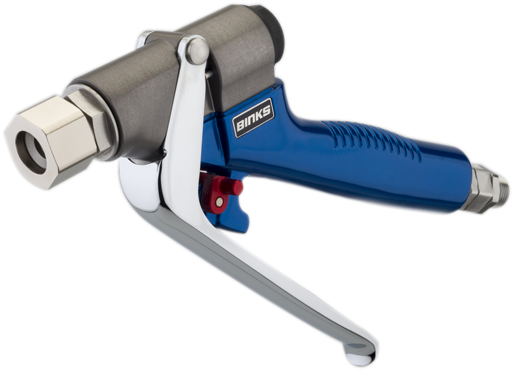

Pistol manual Binks F200 Flow-Guns Presiune max: 276 bar

Binks
2.947,00 Lei
Special pentru: mastic, etanșant, chituri, adezivi

Model: Binks F200,
Presiune max: 276 bar
Material: Anodised Aluminium,
Greutate: 430g
Duza:
La comanda

Durata de livrare: 1 - 3 saptamani

Limita stoc
- +
Adauga in cos
Cod Produs: FG121100 Ai nevoie de ajutor? 0733015882
Adauga la Wishlist Cere informatii
  • Descriere
  • Review-uri (0)






Light-weight precision control flow-guns with easy-pull triggers for reduced operator fatigue

Adaptable nozzle connection kits to ft most common nozzle tools

Durable metal body construction in aluminium and stainless steel for long working life

Longlife Tungsten Carbide Fluid Needle and Seat with extended packing life

Safe to use with ‘no-fnger-trap’ trigger and easy to operate trigger lock

Critical moving parts are enclosed in the gun head to guard against contamination.

CE Compliant


MARKETS AND APPLICATIONS

• Automotive and transport
• General Industrial
• Furniture and window production
• Marine


Binks F200 & F400 Flow-Guns

Advanced, Light-weight Pistol Grip Flow-Guns

HOW TO ORDER YOUR FLOW GUN

1. Choose your Gun Model
2. Choose your Fluid Nozzle Adaptor
3. Choose your Fluid Inlet
1. CHOOSE YOUR GUN MODEL

Model Max Fluid Pressure Part No.
F200 4000psi (276 Bar) FG12XY00
F400 6000psi (414 Bar) FG14XY00

X = Fluid Nozzle (2)
Y = Fluid Inlet (3)

2. CHOOSE YOUR FLUID NOZZLE ADAPTOR (X)

Nozzle Type Ref No. (X) Example Gun Part No.
Binks G3/8” BSPP 1 FG121Y00
3/4” UNF 2 FG122Y00
M18 x 1.5 3 FG123Y00

CONSTRUCTION MATERIALS

Gun head and F200 Anodized Aluminum
Fluid Passageways F400 Stainless Steel
Gun Handle   Anodized Aluminum
Fluid Needle and Seat   Tungsten Carbide
Seals   Polyethylene
  Fluoroelastomer (FKM)
Weight (with G 3/8” BSP F200 430g (0.95lbs)
nozzle kit) F400 610g (1.34lbs)

ACCESSORIES

Part No Description
FG300011 Nozzle spigot to suit Binks nozzle adaptor for nozzles with 1/8” NPT threads
104170 1/4” NPSM Z-Swivel 8000 psi (550 Bar)
104171 G1/4” BSP Z-Swivel 8000 psi (550 Bar)
107906 High Pressure Regulator 5000 psi (345 Bar)
107908 Back Pressure Regulator 5000 psi (345 Bar)
A full range of high pressure hoses are also available. Visit our website for further information.
